Industrial Threshold Seal Kit ¼" High - Installation Instructions

Thoroughly sweep the installation area to remove any dust and debris prior to fitting.

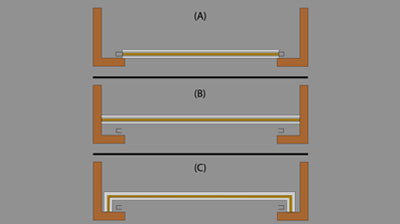

Choose an installation position

Position A

The threshold is installed between the door tracks.

Position B

The threshold is installed wall-to-wall behind the garage door tracks.

Position C

The threshold seal is installed slightly back from the door and mitred around the door tracks. This may be suitable if the door has an alarm sensor that cannot be removed.

Based on the position you selected in Step 2:

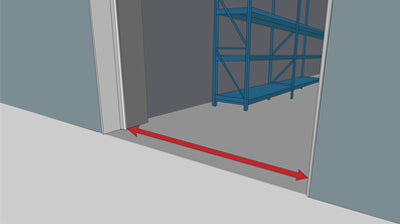

a) Measure the width of the opening in between the door tracks

b) Measure the distance wall-to-wall

c) Measure around the door tracks, and the distance between the threshold seal fitting position and the wall

Based on the position you selected in Step 2:

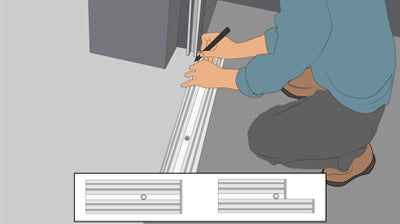

a) Mark and cut the threshold to size to sit in between the door tracks (notch the seal around the tracks as shown)

b) Mark and cut the threshold to size to fit from wall-to-wall

c) If fitting the threshold seal around the door tracks, measure the distance between the wall and the back edge of the threshold seal and cut the end sections to this length. Using a mitre saw, cut the threshold seal sections accordingly.

Turn the threshold section(s) upside down and insert the bottom seals into the grooves at either end of the threshold, and cut off any excess.

Return the threshold seal to an upright orientation and lay it into position across the opening.

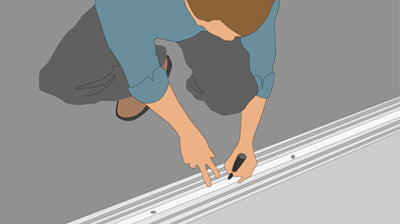

Using a marker pen/pencil, mark where to drill the holes in the concrete.

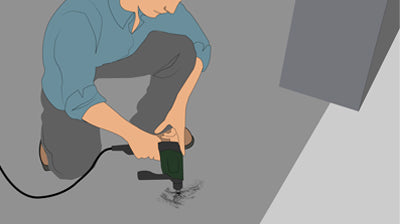

Remove the threshold, and using a ¼" (6mm) drill bit, drill the holes for the screws.

Once completed, ensure the surface is brushed clean to remove debris.

In the case of the floor being uneven, lay a bed of adhesive underneath where the threshold seal is to be fitted to ensure a watertight seal.

With the threshold seal in position, mark along the front and back edge of the seal with a marker pen/pencil.

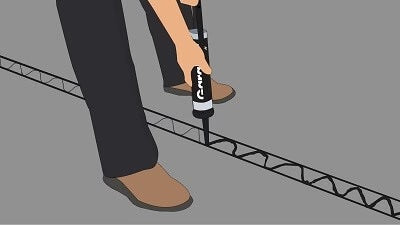

Remove the threshold seal and mark a line approx ½" inside the existing lines, followed by a zig zag line in the middle of them.

Apply adhesive & sealant following the pencil lines created.

Place the threshold seal back into position.

Insert all the screws in their respective holes and hand tighten each of them, or use an electric screwdriver but do not tighten them fully.

Ensure that all screws fit snugly.

NOTE: There is no need to use plugs as the fixings have a cut thread design that enables them to be drilled into concrete.

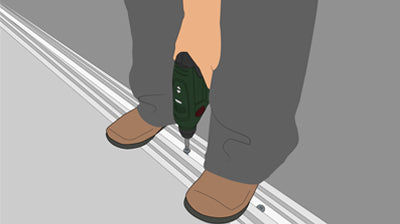

Apply pressure to the threshold seal with your foot.

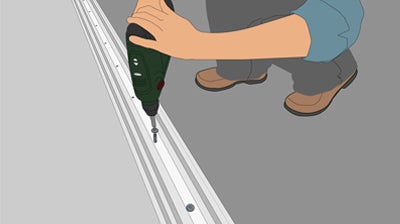

Using an electric screwdriver and T30 screwdriver bit (included), tighten the screws into place making sure they are flush but do not overtighten.

Depending on the fitting position of the threshold seal:

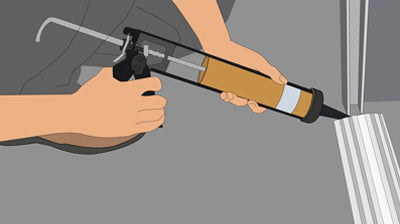

a) Apply sealant & adhesive around the edges of the threshold seal and the frame to ensure a watertight seal.

b) Apply sealant & adhesive around the edges of the threshold seal and the wall to ensure a watertight seal.

c) Apply adhesive and sealant in the mitre join of the threshold seal, and around the edges of the seal to ensure a watertight seal.
